ST NUCLEO-WL55JC2

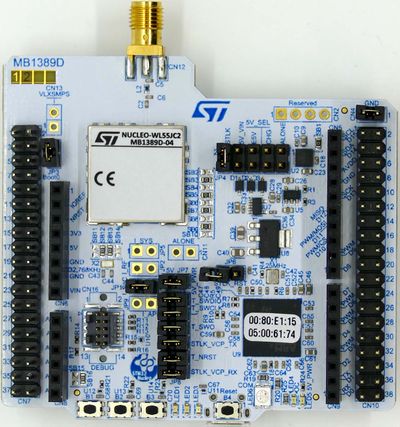

Tthe ST NUCLEO-WL55JC2 is a ST STM32WL5x evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG header (CN4)
• Disable the STLink using JP6
• Select 5V_USB_CHGR at JP4
• Power the board via USB (CN1)

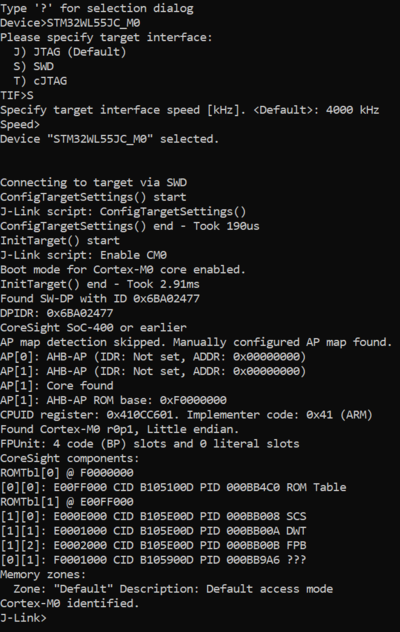

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Application

• Link: File:ST STM32WL55JC2 TestProject ES V510b.zip
