STR731-SK

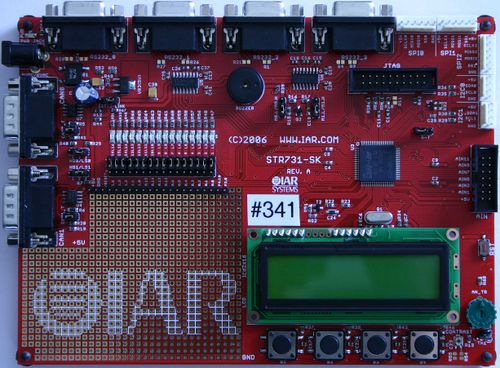

The STR731-SK is a STR731FV2 evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG connector of the evaluation board.
• Set the EXT/JLINK jumper to EXT and power the board via the PWR_JACK.
• Alternatively, set the jumper to JLINK and power the board via your J-Link.

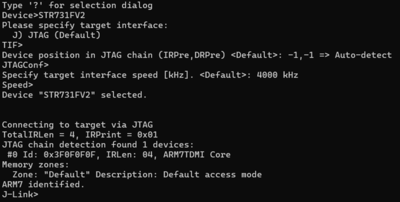

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the STR731FV2. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V9.50
• Embedded Studio: V8.26
• Hardware: STR731FV2
• Link: File:STR731FV2 HelloWorld.zip
