STR-P711

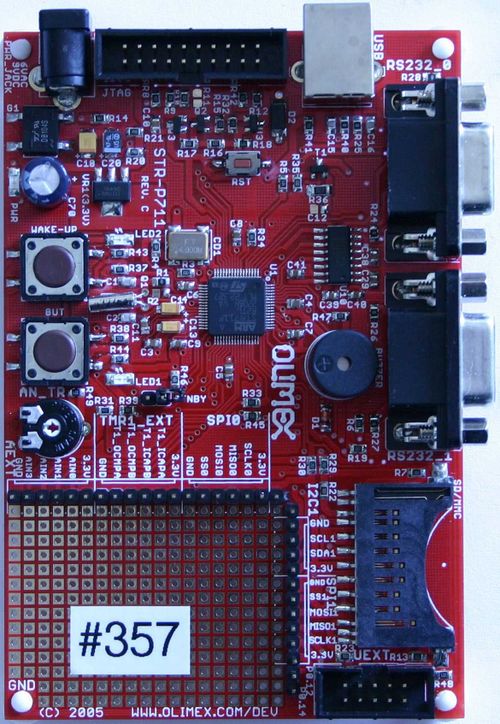

The STR-P711 is a STR711FR2 evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG connector of the evaluation board.
• Power the board via the USB connector.
• Alternatively, power the board via the PWR_JACK.

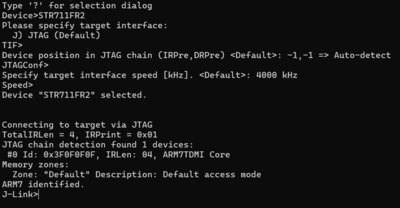

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the STR711FR2. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V9.50
• Embedded Studio: V8.26
• Hardware: STR711FR2
• Link: File:STR711FR2 HelloWorld.zip
