RTK772103FC00000BR

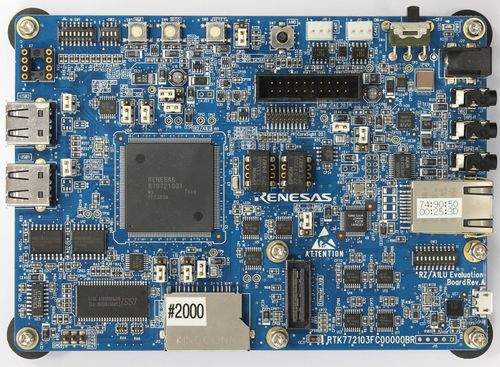

The RTK772103FC00000BR is a Renesas RZ/A1L evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG connector J17 on the evaluation board.
• Power the board via the power jack J20.

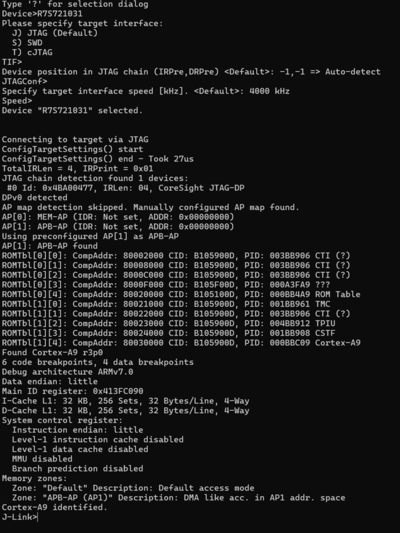

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the R7S721031. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V9.50
• Embedded Studio: V8.26
• Hardware: RTK772103FC00000BR
• Link: File:R7S721031 HelloWorld.zip
