LIS331EB Discovery

The LIS331EB Discovery is an LISB331EB evaluation board.

Preparing for J-Link

• Connect the J-Link to the evaluation board, using jumper wires as follows:

Evalboard Pin	J-Link Pin	Signal Name
JP4-V18	1	VTref
JP4-GND	4	GND
JP4-SIO	7	SWDIO
JP4-SCK	9	SWCLK
JP4-Res	15	RESET

Note: For a more reliable, simpler solution, the SEGGER Flying Wire Adapter is recommended.

• Power the evaulation board via CN1 (USB).

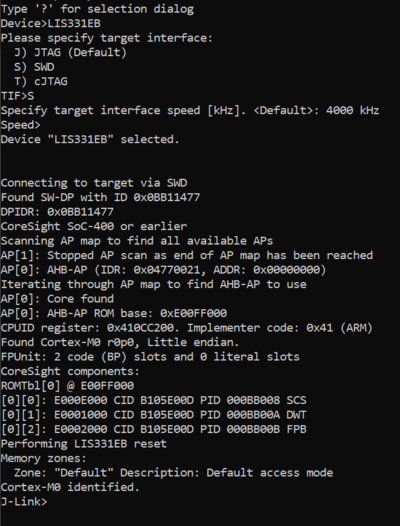

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the LIS331EB. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.21
• Embedded Studio: V8.26
• Hardware: LIS331EB
• Link: File:LIS331EB HelloWorld.zip
