Introduction

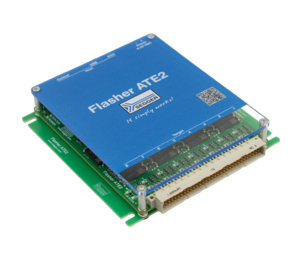

SEGGER Flasher ATE2

SEGGER's Flasher ATE2 is SEGGER's all-in-one solution for gang-programming.

The Flasher ATE2 embeds 8 fully independent modules serving as individual channels for parallel, high-speed gang-programming. If required, each channel can be configured to program a different device with a different firmware image.

The Flasher modules are set up just once per channel configuration using SEGGER's Flasher Software Package. The software to be used depends on the type of flash chip being programmed. The Flasher ATE2 can receive commands and send results via the ASCII terminal interface "stand-alone", without the need of a desktop PC. The use of a single Flasher ATE2 with its 8 integrated Flasher modules is the perfect solution for high-volume mass production.

The Flasher ATE2 supports the same target devices and programming interfaces as the SEGGER Flasher PRO and Flasher Compact series of programmers. Therefore, the Flasher ATE2 takes advantage of the extensive list of supported devices and target interfaces with ultra-fast programming speed and reliability. For more information on supported target devices, visit https://www.segger.com/supported-devices/flasher/ .

Technical specifications

Specifications
Power supply 8-30VDC, reverse polarity protected, max. 15W
Power consumption Max. 15W
Programming interface 96-Pin DIN 41612 connector, 8 programming channels
Host interfaces USB Type-B (Upstream), USB Type-A (Downstream), Ethernet, ATE connector (20-pin)
Operating Temperature +5°C ... +45°C
Storage Temperature -20°C ... +65°C
Relative Humidity (non-condensing) < 90% rH
Size (without cables) 130mm x 150mm x 25mm
Weight (without cables) 240g



Programming interface

The Flasher ATE2's programming interface combines 8 independent programming interfaces routed through a 96-Pin DIN 41612 connector.
The following table lists the pin mapping:

SEGGER Flasher ATE2 Programming interface mapping

ATE connector

The ATE connector provides all signals required for controlling a Flasher ATE2 remotely in an ATE setup:

  • nSTART_IN, nBSY_OUT, OK_OUT: Combined control/status signals of all 8 programming channels
  • TX/RX: UART connection (RS-232 signal levels i.e. +/- 3..15 V)
  • *-KEY: Input that starts the programming of the respective channel when set high
  • nMSD: Can be pulled low during power up to enter MSD mode of Flasher ATE2 (e.g. for firmware upload on system failure)

SEGGER Flasher ATE2 ATE control connector mapping

Features of the Flasher ATE2

  • Stand-alone In-System Programming (ISP) solution
  • 8 individual parallel programming channels, each with their own programming circuit memory
  • Built-in web & FTP servers for easy setup

Supported CPU cores

The Flasher ATE2 modules support the same CPU cores as our Flasher Compact series of programmers.
A list of supported cores can be found here: https://kb.segger.com/Flasher_Compact#Supported_cores .

Supported Target interfaces

The Flasher ATE2 modules support the same target interfaces as our Flasher Compact series of programmers.
A list of supported target interfaces can be found here: https://kb.segger.com/Flasher_Compact#Target_Interfaces .

Related articles

Note:
The following Flasher Hub articles also apply to the Flasher ATE2.
