Trident DKNCZ20

From SEGGER Knowledge Base
Jump to navigation Jump to search

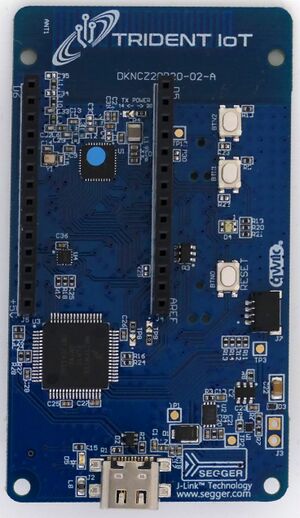

Trident DKNCZ20 evaluation board

The Trident DKNCZ20 is a Trident T32CZ20 evaluation board.

Minimum requirements

  • J-Link software V8.10h or later

Preparing for J-Link

Either the built-in J-Link OB or an external J-Link may be used to connect to the target device.

Using J-Link OB

  • Power the board via USB-C

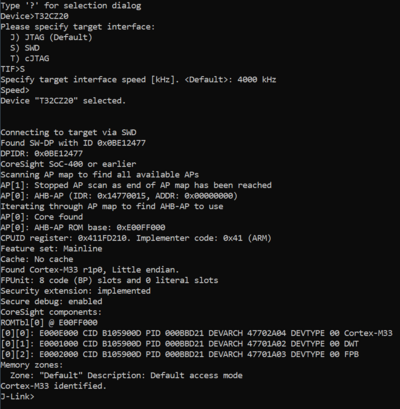

  • Verify the connection with e.g. J-Link Commander. The output should look as follows:

Trident T32CZ20 Connect.png

Using external J-Link

  • Connect J-Link to the SWD header (J1). The 6-pin needle adapter is recommended for this.
  • Power the board via USB-C
