Toshiba SmartMCD TB9M001FTG
Jump to navigation
Jump to search

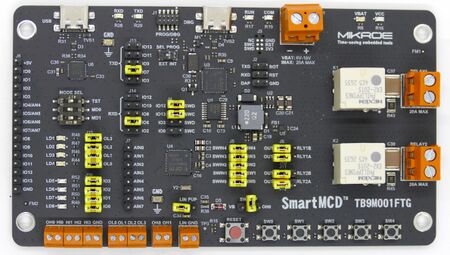

This article describes specifics for the Toshiba SmartMCD TB9M001FTG evaluation board.
Preparing for J-Link
- Connect the J-Link to J1.
- Check SEL PROG switch to be in EXT postion.
- Power the board via TB1.
- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Toshiba SmartMCD TB9M001FTG.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: Toshiba SmartMCD TB9M001FTG
- Link: File:Toshiba SmartMCD TB9M001FTG TestProject ES 7V20.zip
