Toshiba SmartMCD

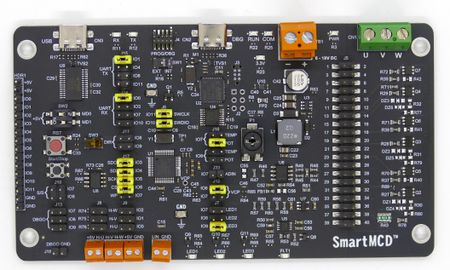

This article describes specifics for the Toshiba SmartMCD evaluation board.

Preparing for J-Link

• Connect the J-Link to J4.
• Power the board via TB1.

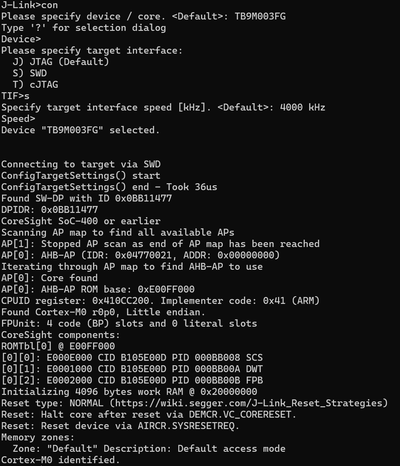

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Toshiba SmartMCD.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V7.20
• Hardware: Toshiba SmartMCD
• Link: File:Toshiba TB9M003FG TestProject ES 7V20.zip
