Template:FW Info Identify

This template is used to share information between articles on J-Link/ Flasher firmware.

Parameters

Parameters may be passed in any order, when specified directly.

Parameter	Meaning	Example value	Default
JLinkOrFlasher	Should be either "J-Link" or "Flasher"	J-Link	---

Implementation

Probe firmware version shown in {{{JLinkOrFlasher}}} Configurator

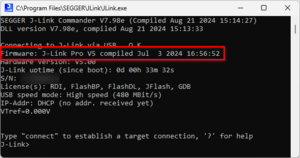

Probe firmware version shown in J-Link Commander

Probe firmware version shown in J-Link log file

The firmware version of a {{{JLinkOrFlasher}}} that is connected to a PC can be checked using one of the following methods:

• Using [[{{{JLinkOrFlasher}}}_Configurator | {{{JLinkOrFlasher}}} Configurator]]:
  1. Start {{{JLinkOrFlasher}}} Configurator
  2. Locate the table entry for the {{{JLinkOrFlasher}}} to check the firmware version of
  3. The Probe/ Programmer firmware column contains the version of the firmware that is running inside that probe/ programmer
• Using J-Link Commander:
  1. Start J-Link Commander)
  2. Connect to the {{{JLinkOrFlasher}}} to check the firmware version of
  3. Check the console output for the firmware string
• Using the J-Link log file:
  1. Make sure the J-Link log file is enabled
  2. Start any {{{JLinkOrFlasher}}} software (e.g. J-Link Commander)
  3. Connect to the {{{JLinkOrFlasher}}} to check the firmware version of
  4. Open the J-Link log file
  5. Somewhere at the beginning of the log file, a line starting with "Firmware: " will contain the firmware version
