TM4C129X

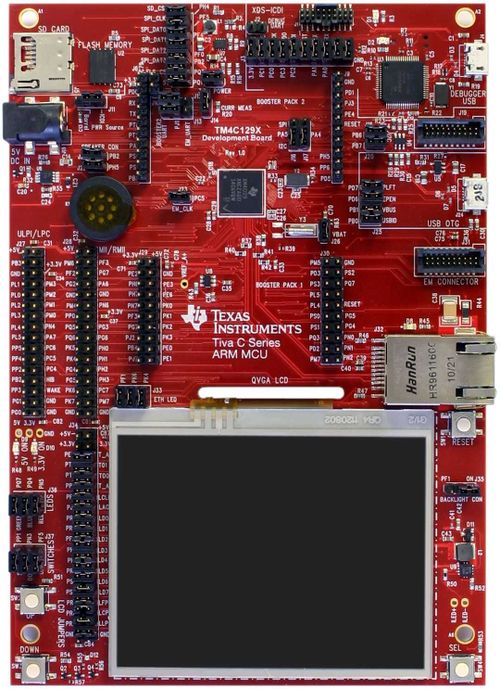

The TM4C129X Development Board is an TM4C129XNCZAD evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG connector J1 (XDS-IDCI) of the evaluation board.
• Set J11 (PWR Source) to ICDI and power the board via J4 (DEBUGGER USB)

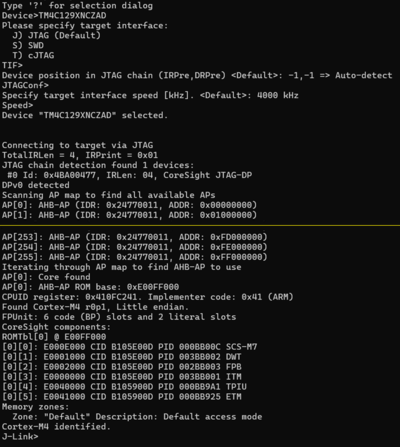

• Verify the Connection with J-Link Commander. The output should look as follows (truncated at the yellow line):

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TM4C129XNCZAD. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.21
• Embedded Studio: V8.26
• Hardware: TM4C129XNCZAD
• Link: File:TM4C129XNCZAD HelloWorld.zip
