The TI TM4C123G LaunchPad evaluation board does not come with an external debug connector. Therefore, in order to use an external debug probe like the J-Link, at the first, the Tiva C Series TM4C123G LaunchPad board needs to be manually setup:

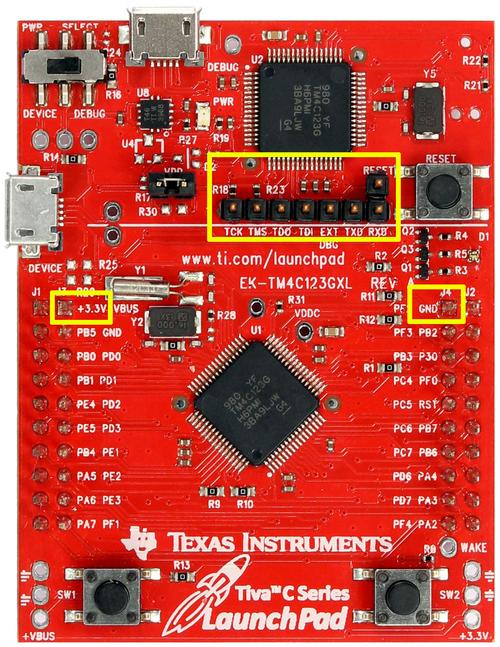

- Solder a strip header to DBG (see image below)
- Connect the debug interface signals manually (e.g. using jumping wires) as described in the table below
 |
|
| TM4C123G LaunchPad |
J-Link
|
| TCK |
Pin 9 (SWCLK / TCK)
|
| TMS |
Pin 7 (SWDIO / TMS)
|
| TDO |
Pin 13 (SWO / TDO)
|
| TDI |
Pin 5 (TDI)
|
| RESET |
Pin 15 (nRST)
|
| 3.3V |
Pin 1 (VTref)
|
| GND |
Pin 4 (GND)
|
|
