TI RM48 HDK

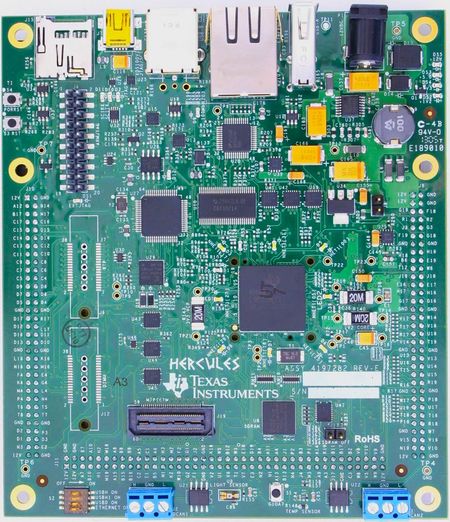

This article describes specifics for the TI RM48_HDK evaluation board.

Preparing for J-Link

• Connect the J-Link to JTAG connector (J4).
• Power the board via 12VDC adapter (P1).

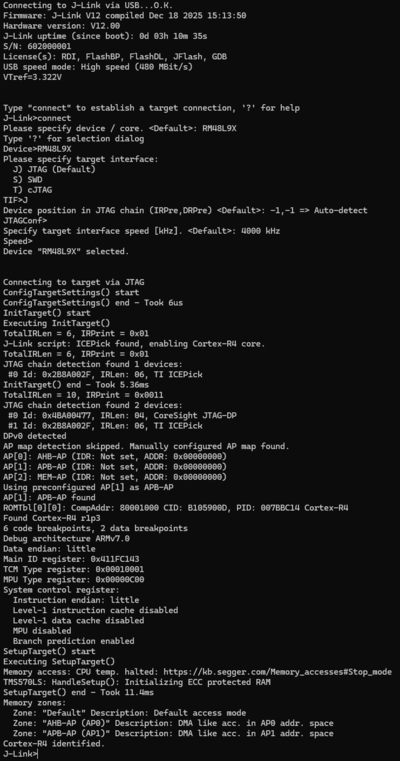

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI RM48_HDK.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.26b
• Hardware: TI RM48_HDK
• Link: File:TI RM48 HDK TestProject ES V826b.zip
