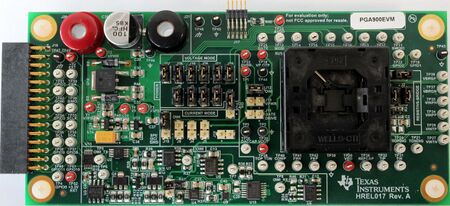

This article describes specifics for the TI PGA900EVM evaluation board.
TI PGA900EVM.jpg

Preparing for J-Link

  • Connect the J-Link to J17.
  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

TI PGA900EVM-connect.png

OTP programming voltage

  • J15 must be closed during OTP programming in order to supply 7.6V to VP_OTP
