TI LaunchPad CC2651P3

This article describes specifics for the TI LaunchPad CC2651P3 evaluation board.

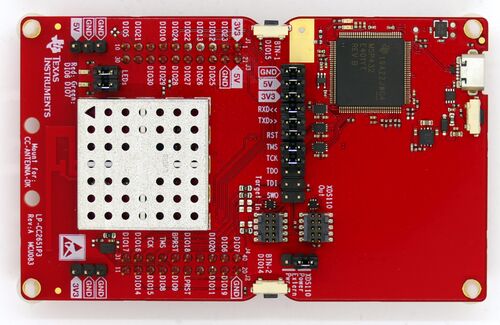

Preparing for J-Link

The TI Launchpad CC2651P3 development board comes with an on-board debugger which drives the debug signals by default. In order to connect via J-Link the following jumpers must be open:

• RST
• TMS
• TCK
• TDI
• TDO
• SWO

Otherwise the on-board debugger by TI interferes with J-Link.

Connecting via J-Link

• Connect the J-Link to "Target In"
• Power the voard via the usb connector or 3.3V DC (3.3V connected 3V3 and GND connected to GND)
• Verify the Connection with J-Link Commander. The output should look as follows:

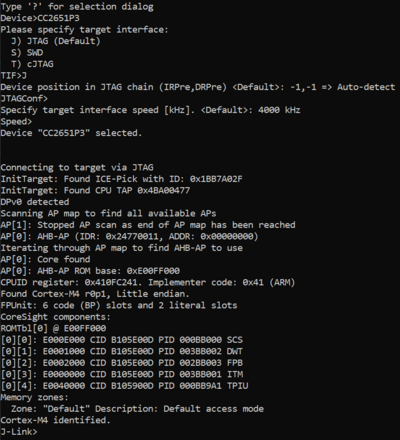

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Raspberry Pi Pico 2 evaluation board. It uses the read and green LEDs as 2-bit binary counter. The counter is paused if the left button is pressed and will decrement instead of increment if the right button is pressed.

Setup

• J-Link software: V8.10a
• Embedded Studio: V8.16
• Hardware: TI LaunchPad CC2651P3
• Link: File:TI CC2651P3 TestProject.zip
