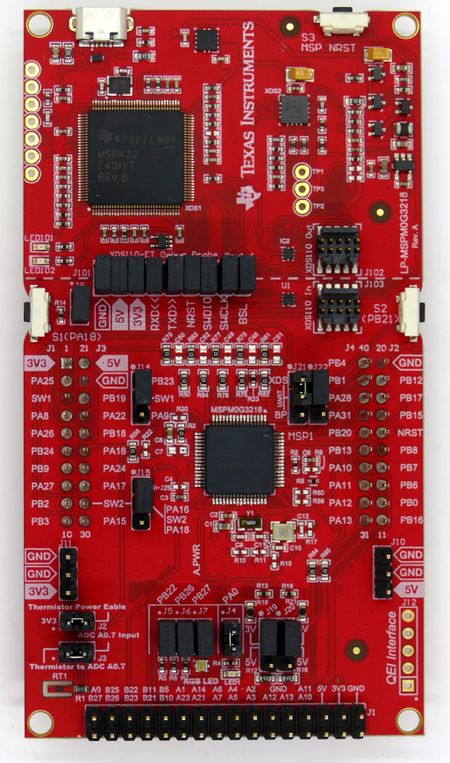

TI LP MSPM0G3218

This article describes specifics for the TI LP-MSPM0G3218 evaluation board.

Preparing for J-Link

• Remove jumpers (J101): NRST, SWDIO, SWCLK
• Connect the J-Link to debug connector (J103)
• Power the board via Micro-USB connector
• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI LP-MSPM0G3218.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.24
• Hardware: TI LP-MSPM0G3218
• Link: File:TI LP-MSPM0G3218 TestProject ES V824.zip
