TI LP-MSPM0L2117

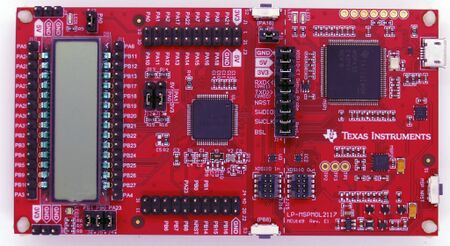

This article describes specifics for the TI LP-MSPM0L2117 evaluation board.

Preparing for J-Link

• Connect the J-Link to J16.

'Remove SWDIO and SWCLK jumpers of J14.

• Power the board via USB connector.

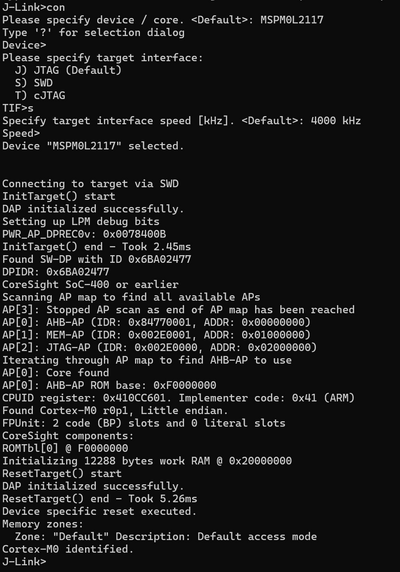

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI LP-MSPM0L2117.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V7.20
• Hardware: TI LP-MSPM0L2117
• Link: File:TI MSPM0L2117 TestProject ES 7V20.zip
