TI LP-MSPM0H3216
Jump to navigation
Jump to search

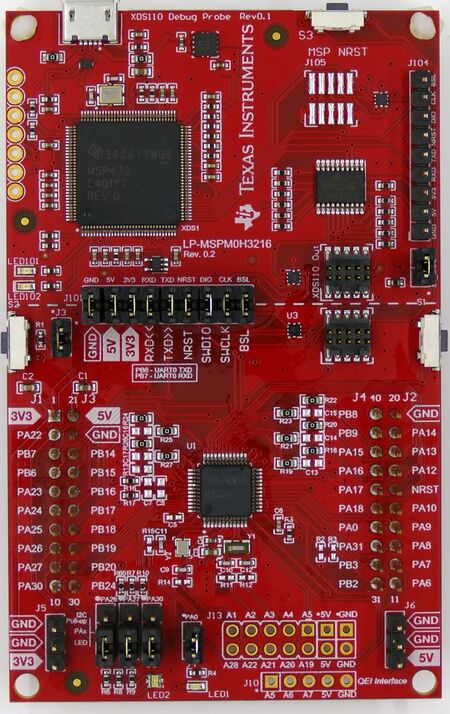

This article describes specifics for the TI LP-MSPM0H3216 evaluation board. It can be used to test & verify MSPM0Hxxx device support.
Preparing for J-Link
- Remove SWDIO, SWCLK and NRST jumpers of J101.
- Connect the J-Link to the SWD header on the CPU side.
- Power the board via the USB connector of the break out board.

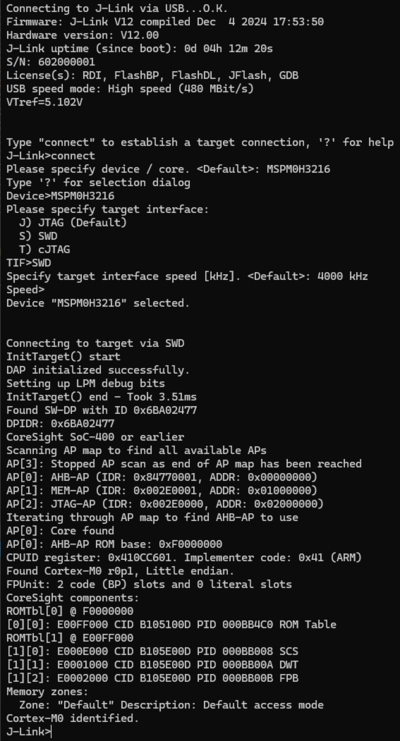

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI LP-MSPM0H3216. It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.16a
- Hardware: TI LP-MSPM0H3216
- Link: File:TI LP-MSPM0H3216 TestProject ES V822.zip
