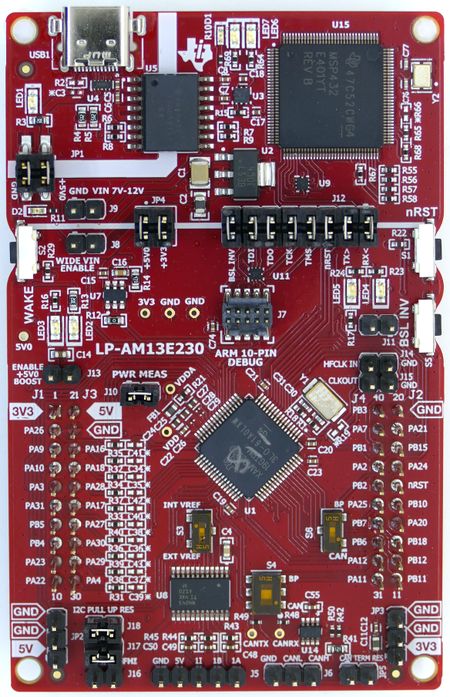

This article describes specifics for the TI LP-AM13E230 evaluation board.

TI LP-AM13E230 board.JPG

Preparing for J-Link

  • Connect the J-Link to ARM 10-pin connector (J7)
  • Power the board via USB Type-C connector (USB1)

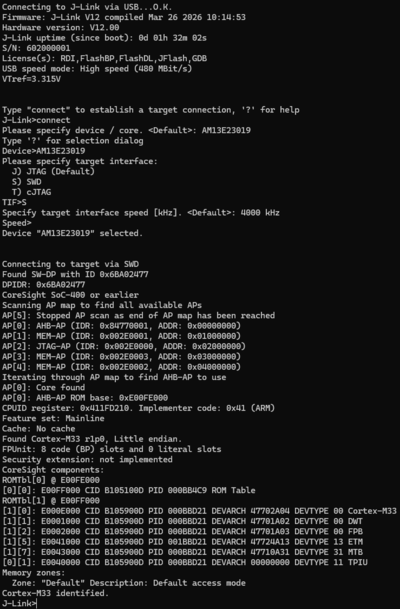

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

TI LP-AM13E230 connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI LP-AM13E230.
It is a simple Hello World sample linked into the internal flash.

SETUP
