This article describes specifics for the TI AWRL1432BOOST evaluation board.
Preparing for J-Link
- Connect the SEGGER MIPI-60 adapter to the 60-pin J6 header on the board.
- Connect the J-Link to the TI board in the following way:
| J-Link Pin | TI AWRL1432BOOST board Pin |
|---|---|
| VTref(1) | J2-1 |
| GND(4) | MIPI60-4 |
| TDI(5) | MIPI60-5 |
| TMS(7) | MIPI60-3 |
| TCK(9) | MIPI60-15 |
| RTCK(11) | MIPI60-6 |
| TDO(13) | MIPI60-13 |
| RESET(15) | J9-10 |
- Relevant switch settings:
| Switch | Position |
|---|---|
| S1.1 | On |
| S1.2 | Off |
| S4.1 | On |
- Power the board with 5V via J7

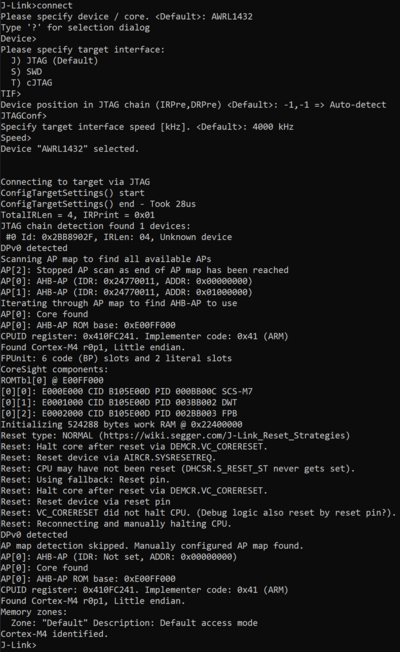

- Verify the Connection with J-Link Commander. The output should look as follows:
