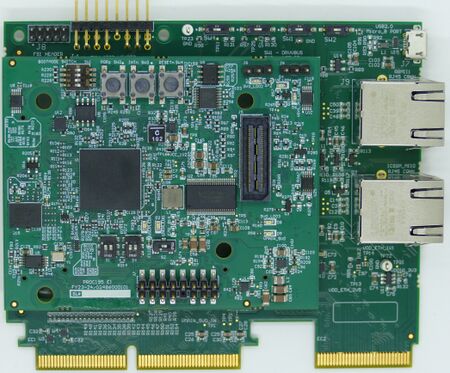

This article describes specifics for the TI AM261x SOM evaluation board.
Preparing for J-Link
- Insert the TI AM261x SOM board into TMDSHSECDOCK controlCARD Docking Station.
- Connect the J-Link to this pins on the TMDSHSECDOCK board:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J2 | 5 | VTref |
| GND | J2 | 4 | GND |
| TDI | J2 | 3 | TDI |
| TMS/SWDIO | J2 | 1 | TMS |
| TCK/SWCLK | J2 | 11 | TCK |
| TDO/SWO | J2 | 7 | TDO |
- Power the board via USB-C connector(J17) or +5V in jack(J1) on the TMDSHSECDOCK board.
- Turn on the power switch EXT-ON(S1) on the TMDSHSECDOCK board.
- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TI AM261x SOM.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.24
- Hardware: TI AM261x SOM
- Link: File:TI AM261x SOM TestProject ES V824.zip
