This article describes specifics for the TDK-Micronas HVC 5220D Application Board evaluation board.

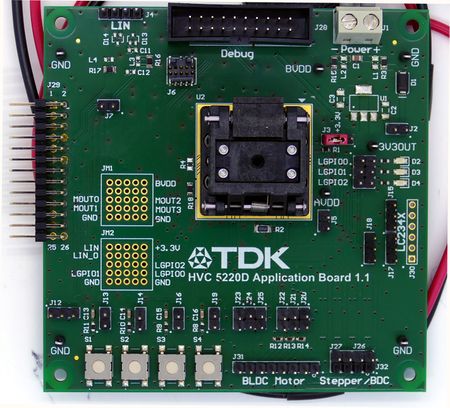

TDK Micronas HVC5220D board.jpg

Preparing for J-Link

  • Connect the J-Link to the "Debug" connector J28.
  • Power the board via screw terminals J1.

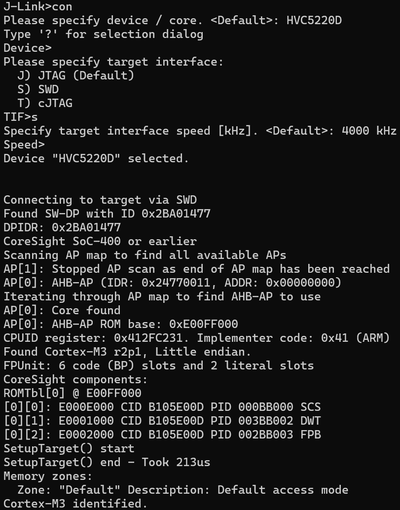

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

TDK Micronas HVC5220D connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the TDK-Micronas HVC 5220D Application Board.
It is a simple Hello World sample linked into the internal flash.

SETUP
