Starter Kit A34M418VLN v1.2
Jump to navigation
Jump to search
This article describes specifics for the ABOV Starter Kit A34M418VLN v1.2 evaluation board.
Minimum requirements
- J-Link software V6.93a or later
Preparing for J-Link

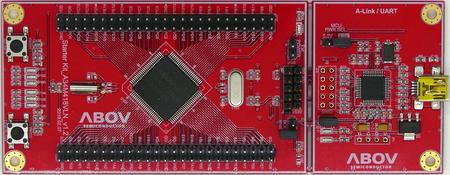

- Connect the J-Link to the pins as seen in the image/table below:
| Cable | JTAG-Pin |
|---|---|
| Red | VTref |
| Blue | TMS |
| Black | GND |
| Yellow | TCK |
- Power the board via usb power supply

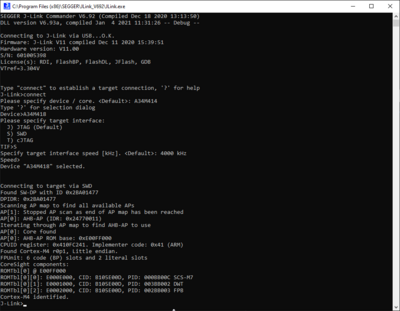

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ABOV Starter Kit A34M418VLN v1.2. It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: V6.93a
- Embedded Studio: V5.32a
- Hardware: Starter Kit A34M418VLN v1.2
- Link: File:ABOV A34M418VLN TestProject ES V532a.zip
