This article describes specifics for the SinoWealth SH33F2053 EMC Board V2.0 evaluation board.
File:ST SH33F2053-DK.jpg

Preparing for J-Link

  • Power the board via JP1.
  • Connect the J-Link to the Debug Pins JP8.

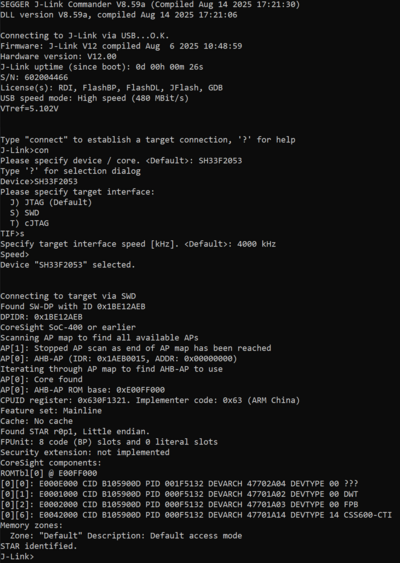

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Connect SinoWealth SH33F2053.png


Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the SinoWealth SH33F2053.
It is a simple Hello World sample linked into the internal flash.

SETUP
