SinoWealth SH30F2602 EMC Board
Jump to navigation
Jump to search
This article describes specifics for the SinoWealth SH33F2053 EMC Board that evaluates the SH30F2.
Preparing for J-Link
- Power the board via JP8.
- Connect the J-Link to the debug pins at JP7.

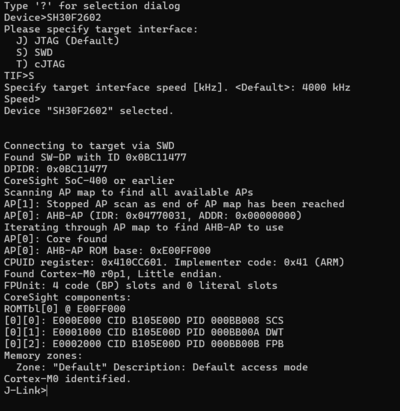

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the SinoWealth SH30F2602.
It is a simple Hello World sample linked into the internal flash.
Setup
- J-Link software: V9.82
- Embedded Studio: V8.26
- Hardware: SinoWealth SH33F2602
- Link: File:SH30F2602 HelloWorld.zip
