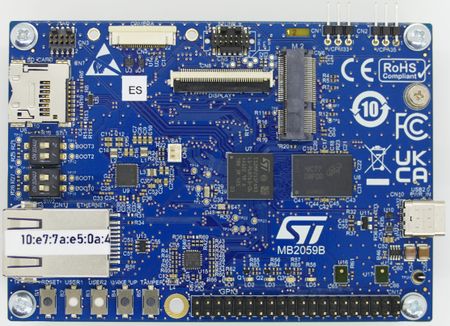

ST STM32MP215F-DK

This article describes specifics for the ST STM32MP215F-DK evaluation board.

Preparing for J-Link

• Select Development boot mode using SW1 and SW2 switches: BOOT0: 1, BOOT1: 1, BOOT2: 0, BOOT3: 0.
• Connect the J-Link to CN3 connector.
• Power the board via USB CN10 connector.

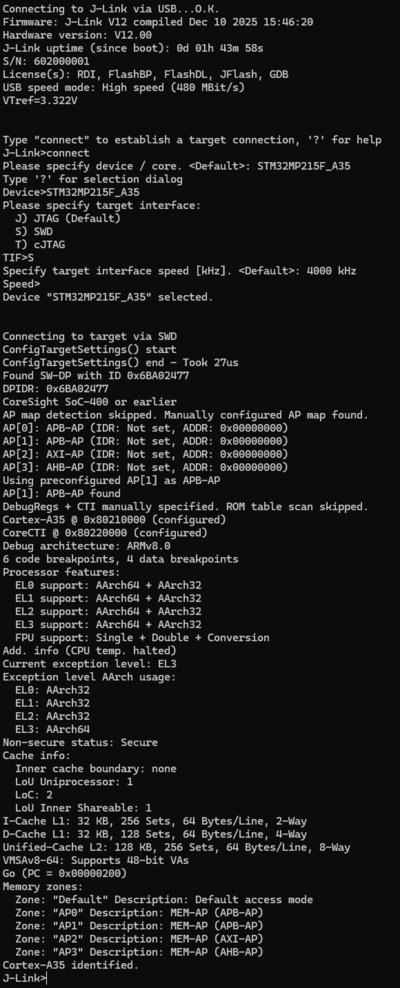

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Cortex-A35

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST STM32MP215F-DK.
It is a simple Hello World sample linked into the internal RAM.

SETUP

• Embedded Studio: V8.26
• Hardware: ST STM32MP215F-DK

Cortex-A35

• Link: File:ST STM32MP215F-DK A35 TestProject ES V826.zip
