This article describes specifics for the ST STM32MP157F-DK2 evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | CN16 | 2 | IOREF |
| GND | CN16 | 7 | GND |
| TMS/SWDIO | Testpoint | TP3 | C20 |
| TCK/SWCLK | Testpoint | TP5 | B20 |
| RESET | CN16 | 3 | NRST |
- Power the board via CN6

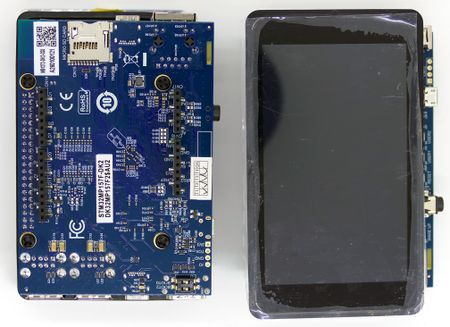

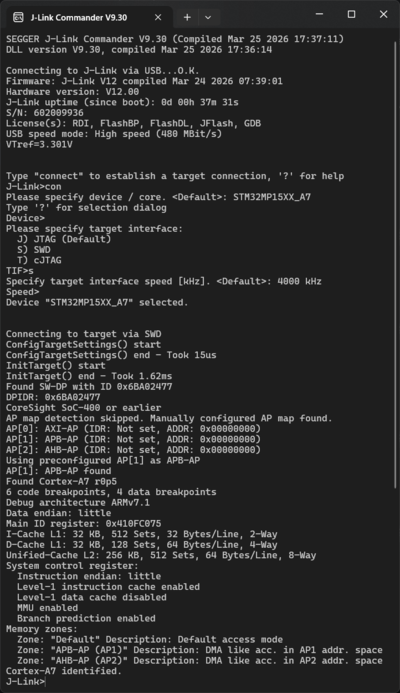

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
