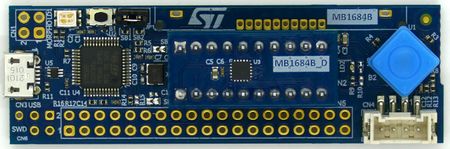

ST STM32C0116-DK

This article describes specifics for the ST NUCLEO-C031C6 evaluation board.

Preparing for J-Link

• Connect to STLink via USB.
  • see Converting ST-LINK On-Board Into a J-Link
• Power the board via USB.

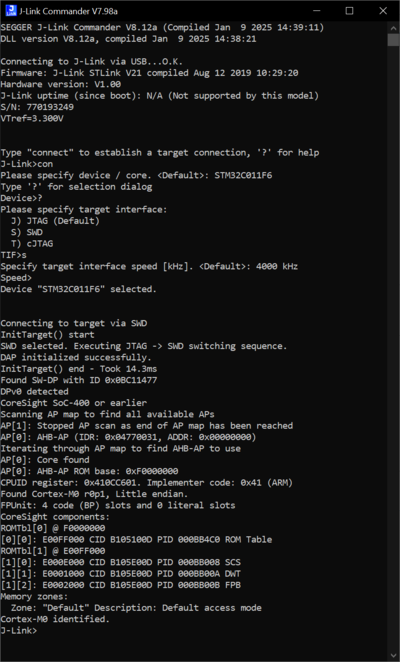

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST STM32C0116.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V7.20
• Hardware: ST STM32C0116
• Link: File:ST STM32C011F6 TestProject ES V720.zip
