This article describes specifics for the ST SR6P6-EVBC8000P evaluation board.
File:ST SR6P6-EVBC8000P SR6G7C8 board.jpg

Preparing for J-Link

  • Connect the J-Link to P9.
  • Power the board via J6 (12V).

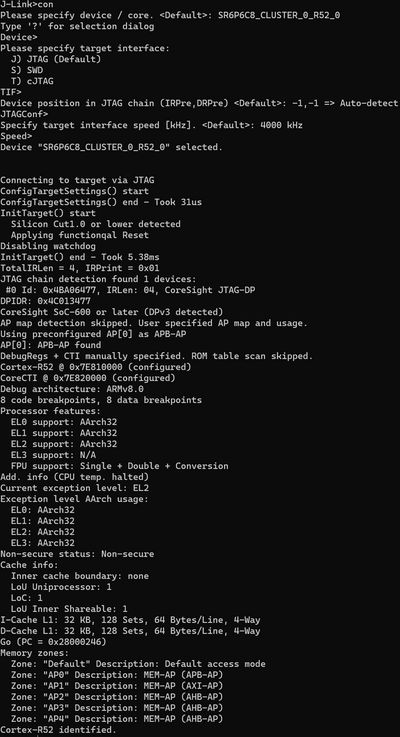

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

ST SR6P6-EVBC8000P SR6G7C8 connect.png
