This article describes specifics for the ST SR6G6-EVBC4000P evaluation board.

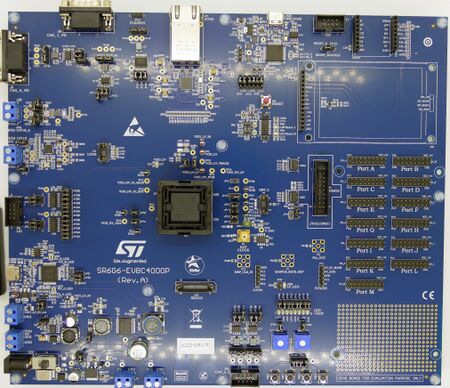

ST SR6G6-EVBC4000P SR6G7C6 board.jpg

Preparing for J-Link

  • Connect the J-Link to P5.
  • Power the board via J1 (12V).
  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

ST SR6G6-EVBC4000P SR6G7C6 connect.png
