ST SR6G3-EVBC5000P

From SEGGER Knowledge Base
Jump to navigation Jump to search

This article describes specifics for the ST SR6G6-EVBC4000P evaluation board.
File:ST SR6G3-EVBC5000P SR6G3C5 board.jpg

Preparing for J-Link

  • Connect the J-Link to P4.
  • Power the board via J3 (12V).

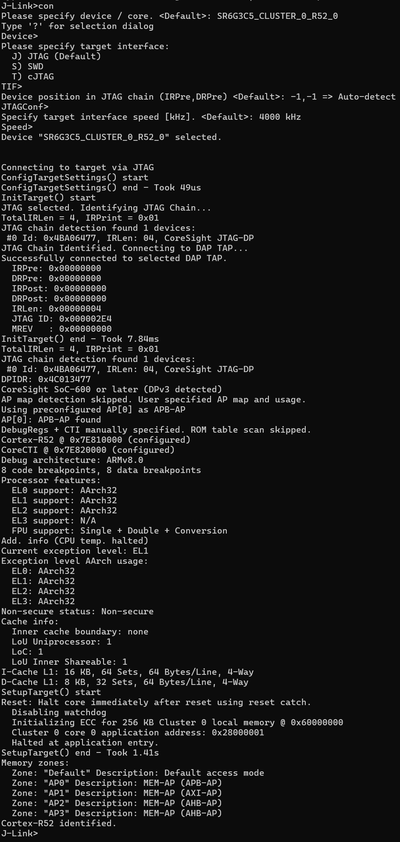

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

ST SR6G3-EVBC5000P SR6G3C5 connect.png
