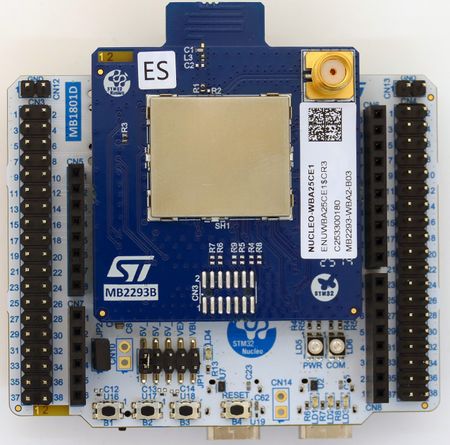

The ST NUCLEO-WBA25CE1 is a ST STM32WBA evaluation board.
Preparing for J-Link
- Connect your J-Link to one of the JTAG headers:
- CN17 on the MB1801D board
- CN3 on the MB22293B board
- Disable the STLink using JP4
- Power the board via USB (CN15)

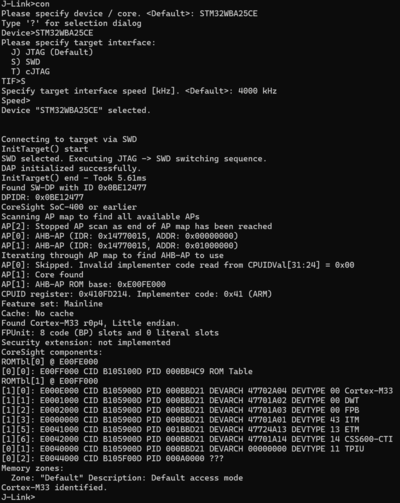

- Verify the Connection with J-Link Commander. The output should look as follows:
Note:
When soldering, use a 10-pin JTAG header and place it in the center of CN3 or CN17. Pins 1, 2, 13 and 14 then remain unpopulated.
When soldering, use a 10-pin JTAG header and place it in the center of CN3 or CN17. Pins 1, 2, 13 and 14 then remain unpopulated.
Example Application
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the STM32WBA25CE1 evaluation board.
Setup
- J-Link software: V8.72
- Embedded Studio: V8.24
- Hardware: ST STM32WBA25CE1 (MB1801D and MB2293B board)
- Link: File:ST STM32WBA25CE1 HelloWorld.zip
