ST NUCLEO-WB07CC

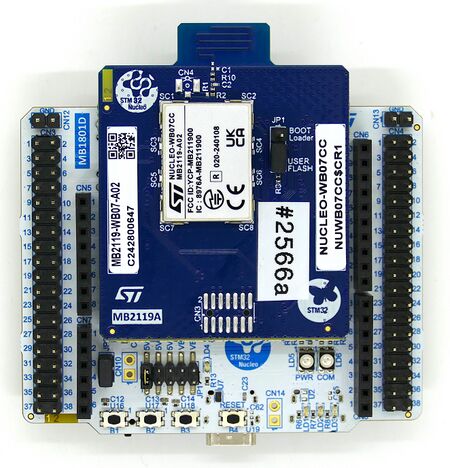

This article describes specifics for the ST NUCLEO-WB07CC evaluation board.

Preparing for J-Link

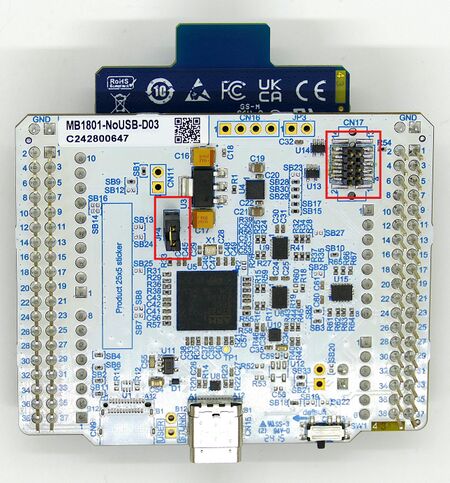

• Solder a 10-pin SWD connector (CN17).

• Solder a jumper pins to (JP4).
• Connect the J-Link to SWD connector.
• Power the board via USB Type-C connector (CN15).
• Select STM32WB07CC as target MCU.

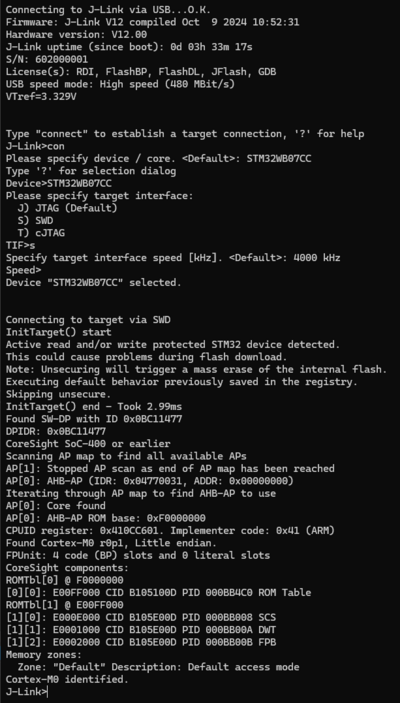

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-WB07CC.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.16a
• Hardware: ST NUCLEO-WB07CC
• Link: File:ST NUCLEO-WB07CC TestProject ES V816a.zip
