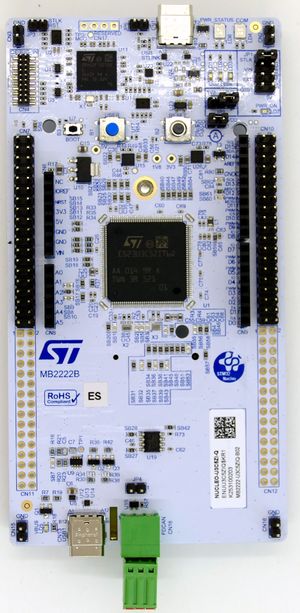

This article describes specifics for the ST NUCLEO-U3C5ZI-Q evaluation board.
Preparing for J-Link
- Connect the J-Link to CN4 (DEBUG IN)
- Power the board via CN1 (USB STLNK)

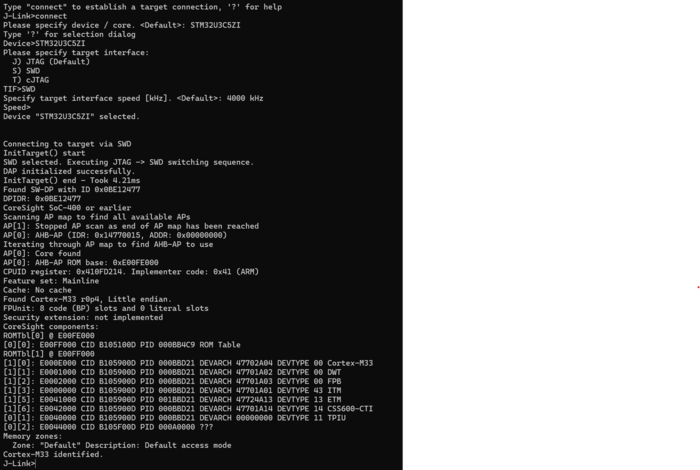

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-U3C5ZI-Q.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.24
- Hardware: ST NUCLEO-U3C5ZI-Q
- Link: File:ST NUCLEO-U3C5ZI-Q ExampleProject ES.zip
