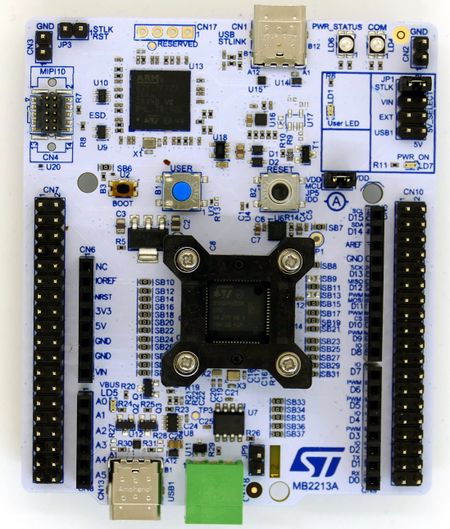

This article describes specifics for the ST NUCLEO-MB2213-WS evaluation board.
This is a socket board.
Preparing for J-Link
- Connect the J-Link to CN4.
- Power the board via CN1.

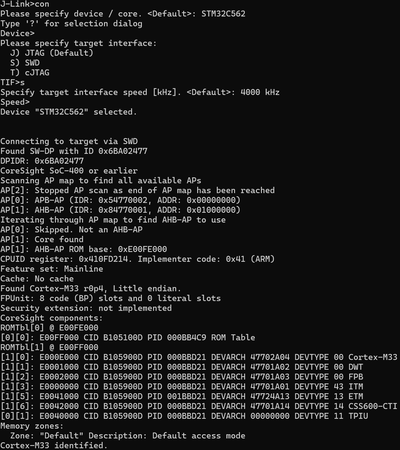

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-MB2213-WS.
It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: V8.36
- Embedded Studio: V7.20
- Hardware: ST NUCLEO-MB2213-WS with MCU STM32C562
- Link: File:ST NUCLEO-MB2213-WS STM32C562 TestProject ES V20.zip
