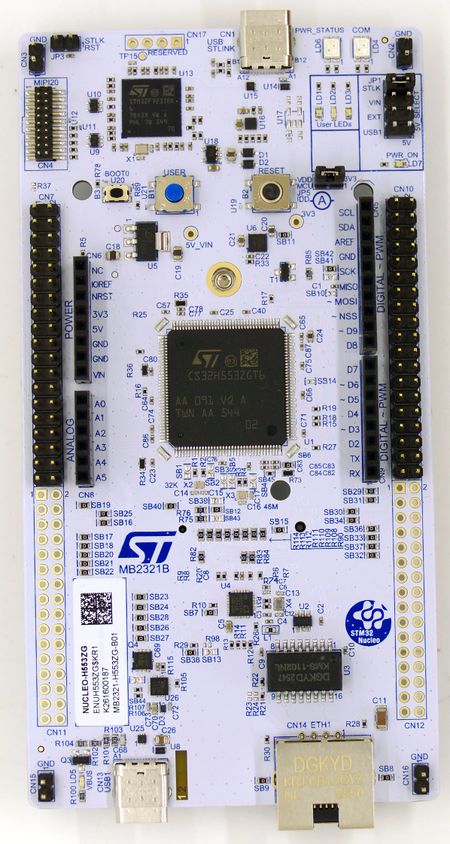

This article describes specifics for the ST NUCLEO-H553ZG evaluation board.
Preparing for J-Link
- Connect the J-Link to CN4
- Power the board via USB STLINK

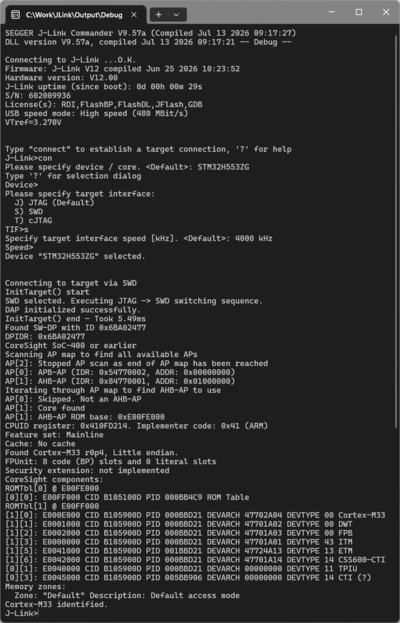

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-H553ZG.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.22
- Hardware: ST NUCLEO-H553ZG
- Link: File:ST NUCLEO-H553ZG TestProject ES V822.zip
