ST NUCLEO-C542RC
Jump to navigation
Jump to search

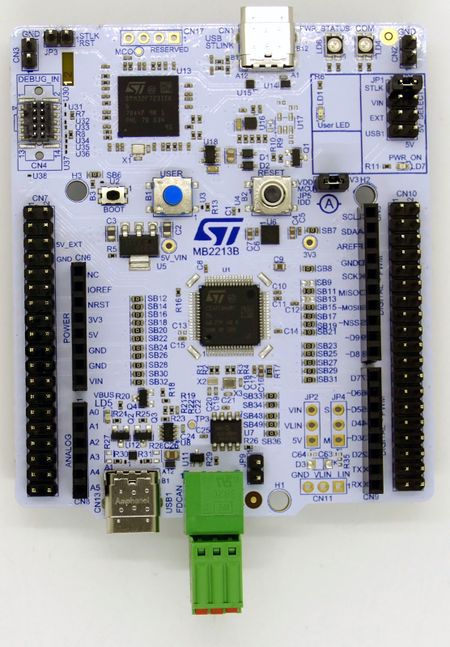

This article describes specifics for the ST NUCLEO-C542RC evaluation board.
Preparing for J-Link
- Connect the J-Link to CN4
- Power the board via USB STLINK

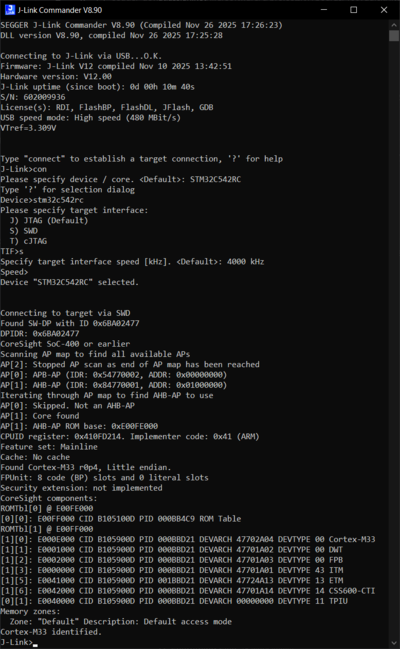

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-C542RC.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.24
- Hardware: ST NUCLEO-C542RC
- Link: File:ST STM32C542RC TestProject ES V824.zip
