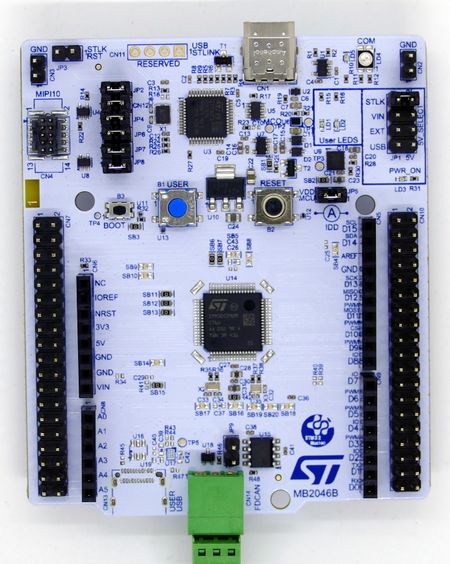

This article describes specifics for the ST NUCLEO-C092RC evaluation board.
Preparing for J-Link
- Connect the J-Link to CN4 (MIPI10).
- Power the board via USB.

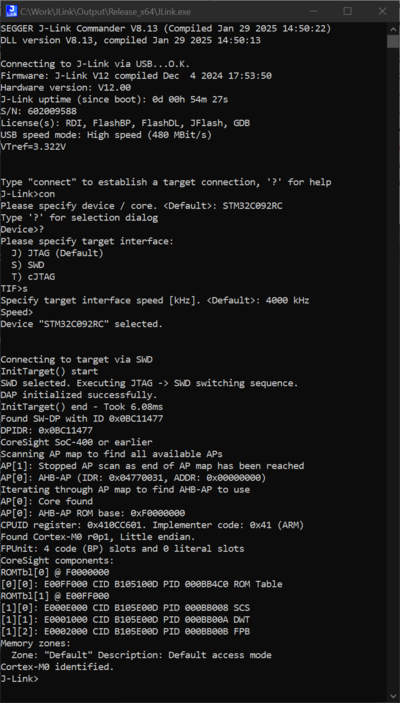

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-C092RC.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: ST NUCLEO-C092RC
- Link: File:ST STM32C092RC TestProject ES V720.zip
