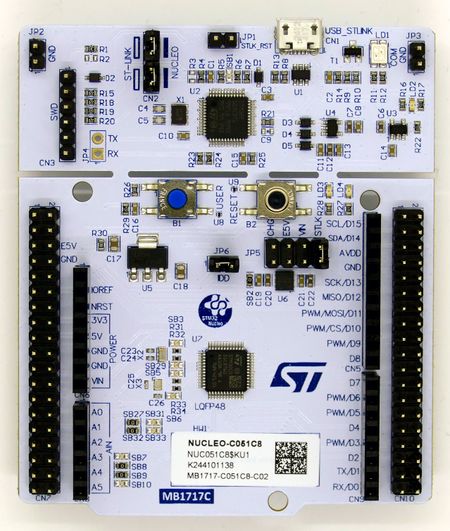

This article describes specifics for the ST NUCLEO-C051C8 evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | CN7 | 16 | |
| GND | CN7 | 8 | GND |
| TMS/SWDIO | CN3 (SWD) | 4 | |
| TCK/SWCLK | CN3 (SWD) | 2 | |
| RESET | CN3 (SWD) | 5 |
- Power the board via USB.

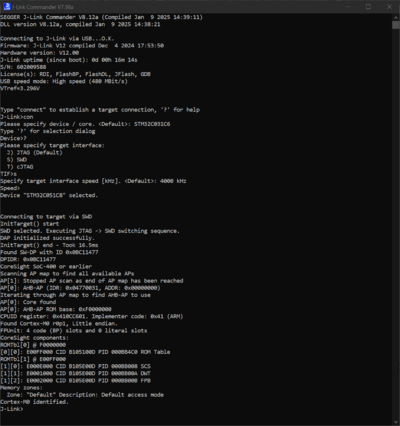

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST NUCLEO-C051C8.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: ST NUCLEO-C051C8
- Link: File:ST STM32C051C8 TestProject ES V720.zip
