STM32H7B3I-DK
Jump to navigation
Jump to search

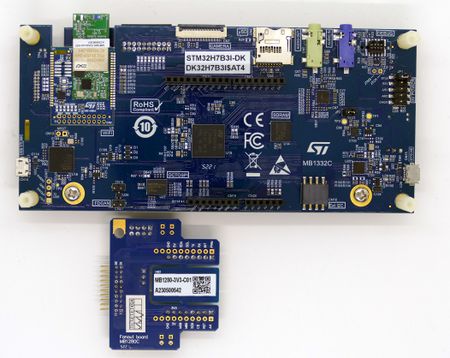

This article describes specifics for the ST STM32H7B3I-DK evaluation board.
Preparing for J-Link
- Connect the J-Link to CN8
- Power the board via CN14

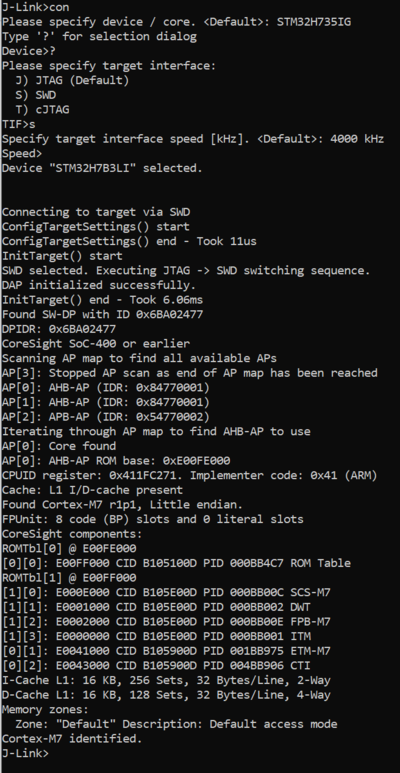

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST STM32H7B3I-DK.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.10b
- Hardware: ST STM32H7B3I-DK
- Link: File:ST STM32H7B3LI TestProject ES V810b.zip
