STEVAL-IDB008V1

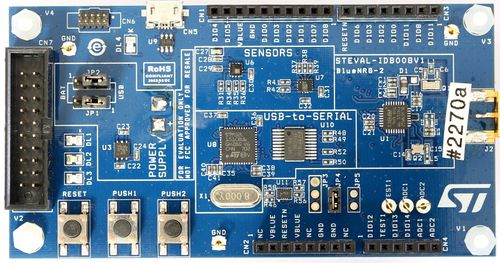

The STEVAL-IDB008V1 is a ST BlueNRG-2 evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG/SWD connector CN6 of the evaluation board.
• Power the board via the USB connector CN5.

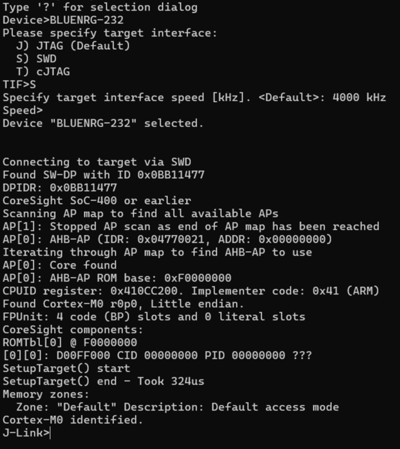

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the STEVAL-IDB008V1. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V9.50
• Embedded Studio: V8.26
• Hardware: STEVAL-IDB008V1
• Link: File:BLUENRG2 HelloWorld.zip
