SAMV71 Xplained Pro
Jump to navigation
Jump to search

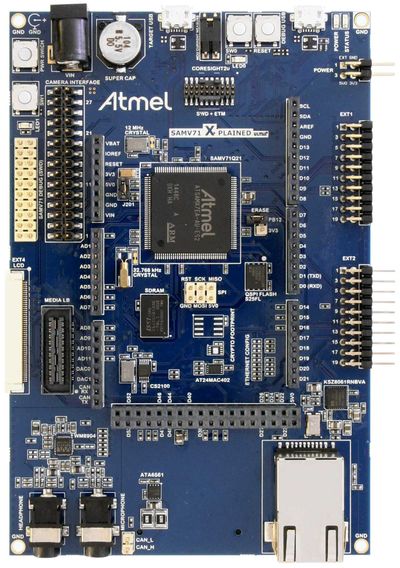

The Atmel SAMV71 Xplained Pro is an ATSAMV71 evaluation board.
Preparing for J-Link
- Connect your J-Link to the "CORESIGHT20 SWD + ETM" connector
- Power the board via "DEBUG USB"

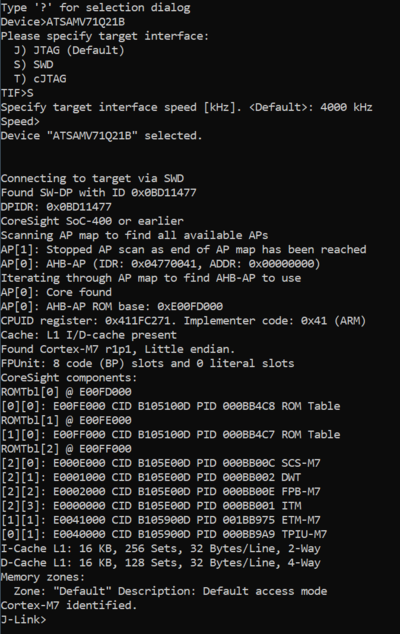

- Verify the Connection with J-Link Commander. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ATSAMV7. It outputs "Hello World!" to the Debug Terminal in a loop.
Setup
- J-Link software: V8.75
- Embedded Studio: V8.16
- Hardware: Atmel ATSAMV71Q21B
- Link: File:ATSAMV7 HelloWorld.zip
