SAME54 Xplained Pro

The Atmel SAME54 Xplained Pro is an ATSAME5 evaluation board.

Preparing for J-Link

• Connect your J-Link to the "TRACE" connector
• Power the board via "DEBUG USB"

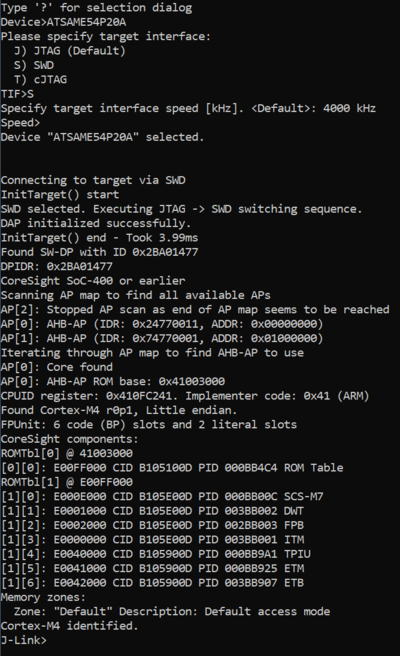

• Verify the Connection with J-Link Commander. The output should look as follows:

Chip erase timeout with Microchip Studio

When the Microchip SAM E53/54 Xplained Pro board gets powered through Target USB port, it can happen that Chip erase executed within Microchip Studio times out.

To fix this behavior it is necessary to power the board through the Debug USB port instead of the Target USB port. This behavior and the workaround have been confirmed by Microchip.

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ATSAME5. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.75
• Embedded Studio: V8.16
• Hardware: Atmel ATSAME5P20A
• Link: File:ATSAME5 HelloWorld.zip
