Renesas RZ/T2H Evaluation Board

From SEGGER Knowledge Base
Jump to navigation Jump to search

This article describes specifics for the Renesas RZ/T2H evaluation board.

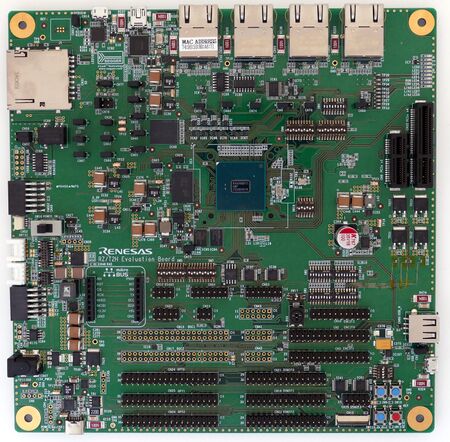

Renesas RZT2H Evaluation Board.jpg

Preparing for J-Link

  • Connect the J-Link to CN60 or CN61.
  • Power the board via CN47.

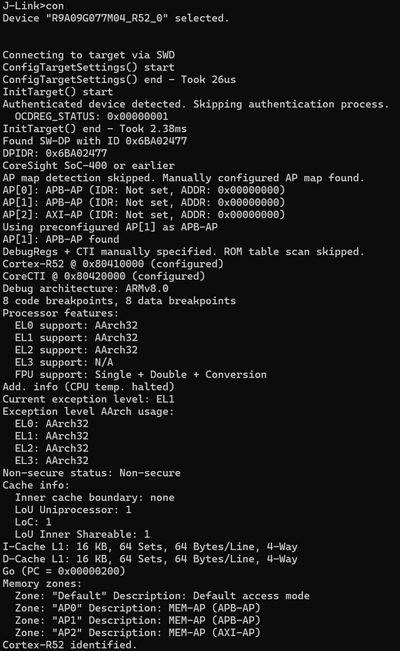

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Renesas RZT2H Evaluation Board connect.PNG
