This article describes specifics for the Renesas RX14T socket board.

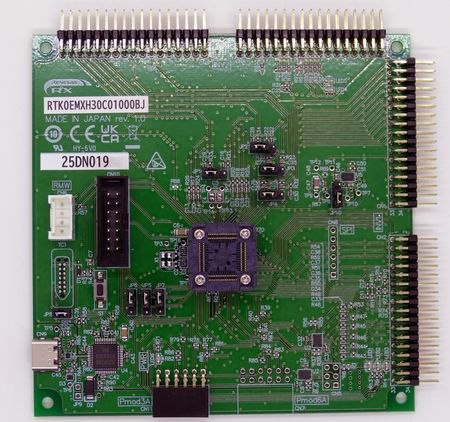

RX14T socket board.jpg

Preparing for J-Link

  • Connect the J-Link to the FINE interface CN1.
  • Power the board via USB-C (CN9).
  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Connect RX14T socket board.png
