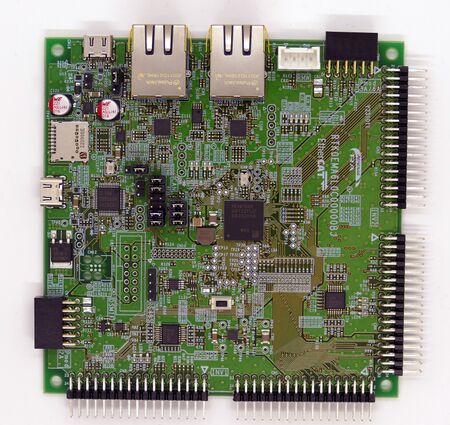

This article describes specifics for the Renesas EK-RA8T2 evaluation board.
Preparing for J-Link
- Connect the J-Link to CN10
- Power the board via USB-C

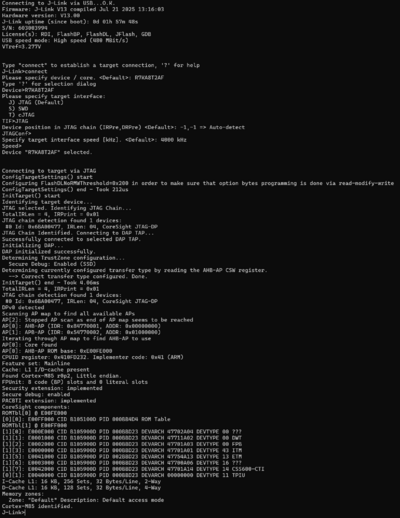

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas MCB-RA8T2.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.24
- Hardware: Renesas MCB-RA8T2
- Link: File:Renesas R7KA8T2AF TestProject ES V824.zip
