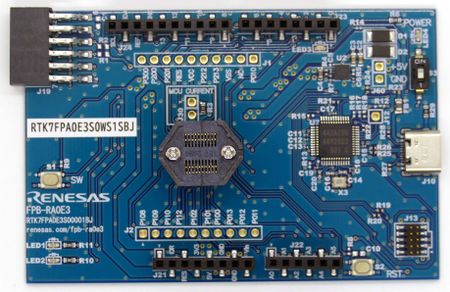

This article describes specifics for the Renesas FRB-RA0E3 evaluation board.
Preparing for J-Link
- Power the board via J10 (USB-C)

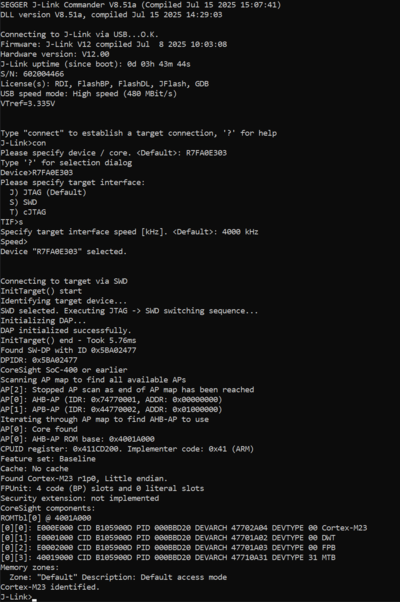

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Renesasudio project wizard and runs out-of-the-box on the Renesas FRB-RA0E3.
It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: V9.22
- Embedded Studio: V8.24
- Hardware: Renesas FRB-RA0E3
- Link: File:Renesas FRB-RA0E3 TestProject ES V824.zip
