This article describes specifics for the Renesas FPB-RA6T3 evaluation board.
Preparing for J-Link
- Connect the J-Link to ......
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J4 | 7 | +3V3_MCU |
| GND | J4 | 8 | GND |
| TMS/SWDIO | J4 | 1 | P108/SWDIO |
| TCK/SWCLK | J3 | 29 | P300/SWCLK |
- Power the board via J8

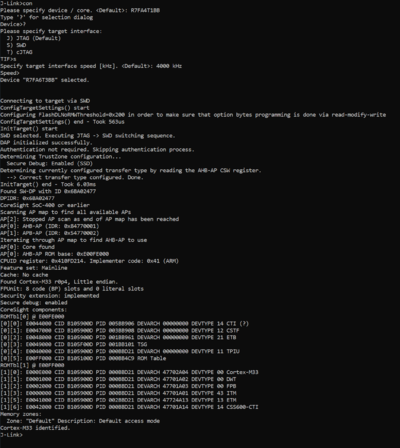

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas FPB-RA6T3.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.10b
- Hardware: Renesas FPB-RA6T3
- Link: File:Renesas RA6T3BB3C TestProject ES V810b.zip
