Renesas FPB-RA2T1

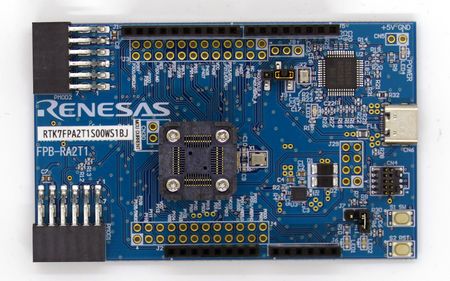

This article describes specifics for the Renesas FPB-RA2T1 evaluation board.

Preparing for J-Link

• Connect the J-Link to J13 connector.
• Power the board via USB TYPE-C J11 connector.

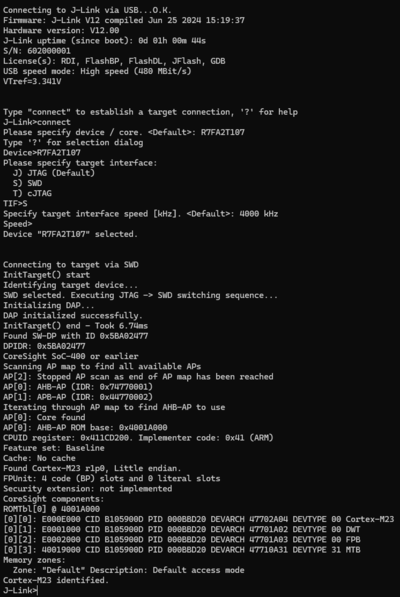

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas FPB-RA2T1.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.10
• Hardware: Renesas FPB-RA2T1
• Link: File:Renesas FPB-RA2T1 TestProject ES V814.zip
