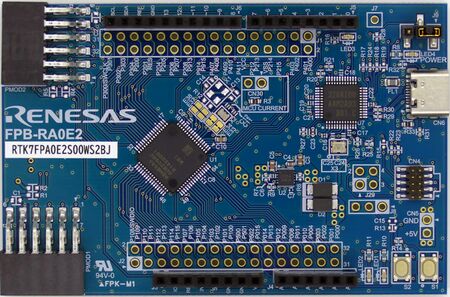

Renesas FPB-RA0E2

This article describes specifics for the Renesas FPB-RA0E2 evaluation board.

Preparing for J-Link

• Connect the board to the host PC via USB-C connector(CN6). J-Link OB is integrated.

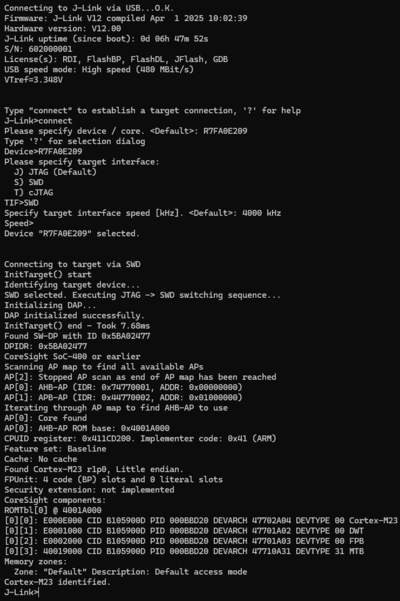

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas FPB-RA0E2.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.14
• Hardware: Renesas FPB-RA0E2
• Link: File:Renesas FPB-RA0E2 TestProject ES V814.zip
